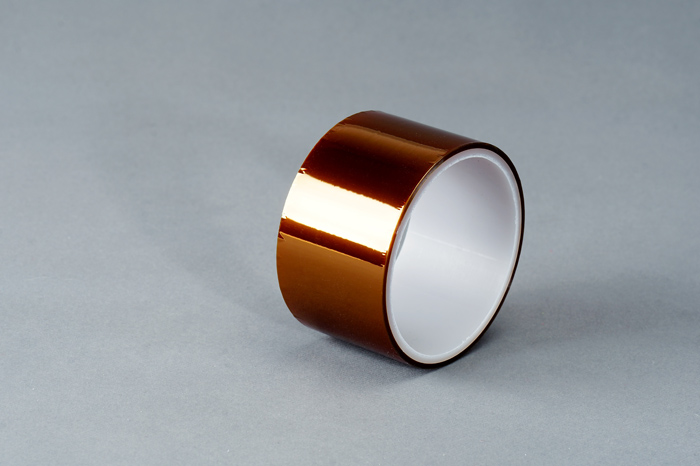

Features：
∙ Excellent electrical insulation properties
∙ Wide range of temperature up to 260℃ (500℉)
∙ Good adhesion, easily peeling off and leaving no residue
∙ Solvent and corrosion resistance
Application：
∙ Mask for protection gold fingers or edge connectors of PCB during the process of wave solder, solder reflow or solder dip
∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components
∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.
∙ Other Class H electrical insulation application on various electronic or electrical components assembly
Product series and main technical parameters:
|
Product Number |
HZTAPE- |
HZTAPE- |
HZTAPE- |
HZTAPE- |
HZTAPE- |
HZTAPE- |
HZTAPE- |
|
Backing/Adhesive |
PI/Silicone |
PI/Silicone |
PI/Silicone |
PI/Silicone |
PI/Silicone |
PI/Silicone |
PI/Silicone |
|
Backing thickness mm(mil) |
0.013(0.5) |
0.025(1.0) |
0.05(2.0) |
0.05(2.0) |
0.075(3.0) |
0.1(4.0) |
0.125(5.0) |
|
Total thickness mm(mil) |
0.03(1.2) |
0.06(2.4) |
0.08(3.2) |
0.1(4.0) |
0.12(4.8) |
0.15(6.0) |
0.18(7.2) |
|
Colour |
Amber |
Amber |
Amber |
Amber |
Amber |
Amber |
Amber |
|
Adhesion to steel (N/25mm) |
3-4 |
5-6 |
3-6 |
6-7 |
5-6 |
4.5-6.5 |
4.5-6.5 |
|
Tensile strength (Kg/25mm) |
8 |
10 |
20 |
20 |
20 |
36 |
40 |
|
Elongation% |
30-40 |
45-50 |
55-60 |
55-60 |
65-70 |
70-75 |
80-85 |
|
Corrosion resistance coefficient |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Dielectric strength (Volt) |
≥2500 |
≥5000 |
≥7000 |
≥7000 |
≥10000 |
≥12000 |
≥16000 |
|
Temp. rating |
260℃(500℉) |
260℃(500℉) |
260℃(500℉) |
260℃(500℉) |
260℃(500℉) |
260℃(500℉) |
260℃(500℉) |
|
Insulation class |
H |
H |
H |
H |
H |
H |
H |
Slitting and packing
1. Width：500mm, 2-500mm can be customized slitting
2. Length: 33m, 66m, can be customized
3. Plastic core internal diameter：76mm(3”), 38mm(1.5”)
4. Packing: carton or pallet
Note： Above data is the accumulative value by using the recognized test methods. In order to ensure the correct selection of the products, please refer the specification and test sample, or feel free to contact our technical service to provide you with further services.
