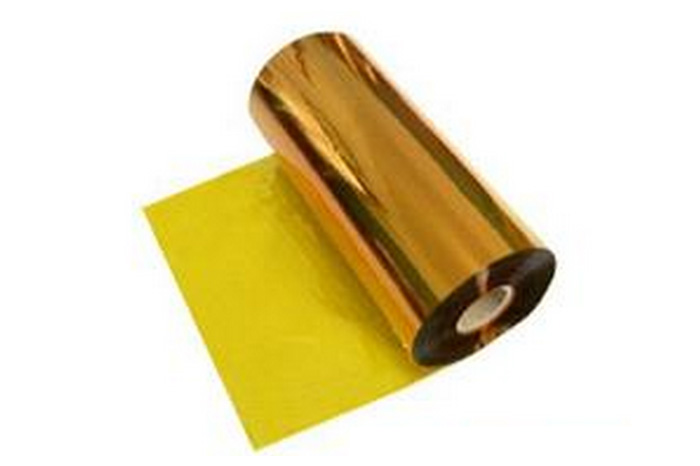

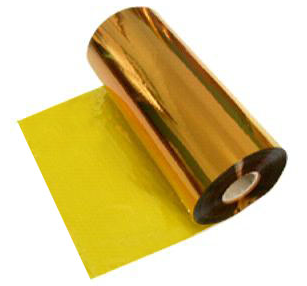

Description：Polyimide film is a kind of high performance polymer through polycondesation of symbenzene tetracarbonic acid dianhydride and diaminodiphenyl ether, which combines excellent physical, electrical and mechanical properties at temperatures as low as -269℃(-452℉) to as high as +400℃(+752℉).
Features ：
∙ Wide range of temperature from -269℃(-452℉) to +400℃(+752℉).
∙ Excellent electrical insulation properties
∙ Flame and radiation retardant
∙ Easy coating
Application：
∙ Wire and cable insulation, interlayer insulation in motor, transformer etc
∙ Polyimide adhesive tape or polyimide laminates
∙ Polyimide tubing
∙ Polyimide label
Technical parameter
Performance
Company
Index value
Width
um(mil)
12.5(0.5)
15(0.6)
25(1)
40(1.6)
50(2)
75(3)
100(4)
125(5)
Density
g/cm3
1.42±0.2
Tensile strength
MD≥
Mpa
140
150
170
170
165
150
145
130
TD≥
115
120
165
165
140
135
120
110
Elongation rate≥
%
35
35
50
50
60
60
60
60
Breakdown strength（48-62Hz）≥
Average value
MV/m
160
160
180
170
160
145
120
115
Surface resistivity 200℃(392F)≥
Ω
1.0X1013
Volume resistivity 200℃(392F)≥
Ω/m
1.0X1010
Dielectric constant 48-62Hz
-
3.5±0.4
Loss tangent 48-62Hz
-
4.0X10-3
