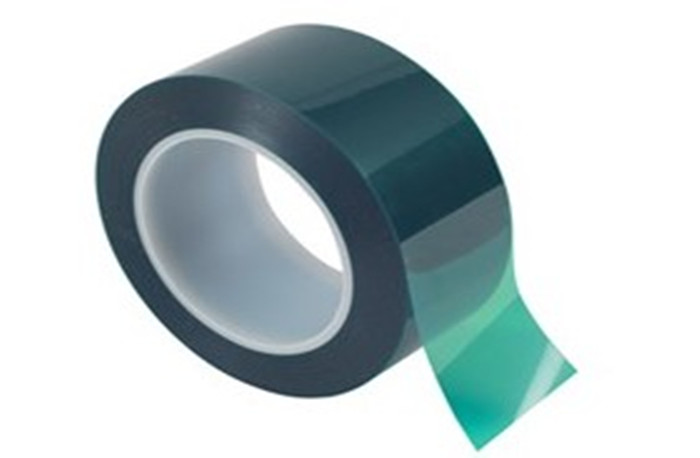

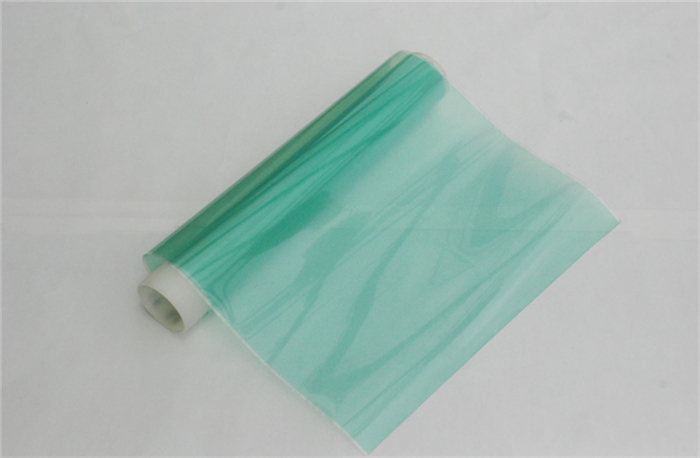

Description：This kind of tape is made of polyester film as backing, coated with silicone pressure sensitive adhesive at single or double sides, laminated single or double layers of PET liner. It features excellent heat resistance, good adhesion, easily peeling off without residue, and solvent resistance. It is widely used for high temperature masking and die cutting.
Features：
∙Flexible and conformable
∙Good adhesion and easy to peel, leaving no residue
∙High temperature resistance up to 200℃ ∙Excellent electrical insulation
Application：
∙ All kinds of die cutting
∙ Widely used in home appliance, electronic products and automotive industries for high temperature masking and insulation
∙ Joint use of release paper (also known as: feeder tape)
Product series and main technical parameters
| Product Number |
HZTAPE- P2540A |
HZTAPE- P2855A |
HZTAPE- P3550A |
HZTAPE- P3565A |
HZTAPE- P3865A |
HZTAPE- P5080A |
HZTAPE- P7513A |
| Backing/Adhesive | PET/Silicone | PET/Silicone | PET/Silicone | PET/Silicone | PET/Silicone | PET/Silicone | PET/Silicone |
| Backing thickness mm(mil) | 0.025 | 0.028 | 0.035 | 0.035 | 0.038 | 0.05 | 0.075 |
| Total thickness mm(mil) | 0.04 | 0.055 | 0.05 | 0.06 | 0.065 | 0.08 | 0.13 |
| Release Liner thickness (mm) | 0.075 | 0.075 | 0.075 | 0.075 | 0.075 | 0.075 | 0.075 |
| Adhesion to steel( N/25mm) | 3.0-4.0 | 6.5-7.5 | 4.0-5.0 | 6.0-7.0 | 6.0-7.0 | 6.0-7.0 | 13-14 |
| Tensile strength(kg/25mm) | 11 | 13 | 15 | 15 | 16 | 22 | 36 |
|
elongation% |
120-130 | 120-130 | 120-130 | 120-130 | 120-130 | 100-110 | 140-145 |
| Dielectric strength(Volt) | 8,200 | 8200 | 7,000 | 7000 | 6300 | 4200 | 3,500 |
| Temp. rating(℃) | -40℃-200℃ | -40℃-200℃ | -40℃-200℃ | -40℃-200℃ | -40℃-200℃ | -40℃-200℃ | -40℃-200℃ |
| Colour | Clear / Red / Green / Yellow / Blue / Black Blue / Black /Opal | ||||||
Slitting and packing
1. Width：500mm, 1020mm, 1050mm, 2-1000mm can be customized slitting
Note：Above data is the accumulative value by using the recognized test methods. In order to ensure the correct selection of the products, please refer the specification and test sample, or feel free to contact our technical service to provide you with further services.
