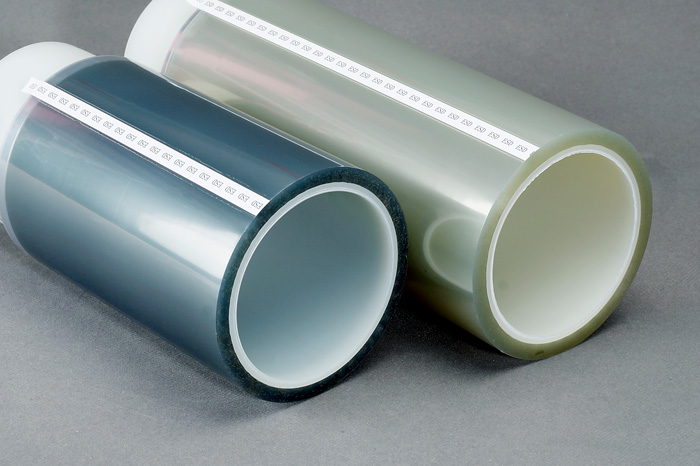

Description: Anti-static tape, also known as ESD tape. “Anti-static polyimide tape” and “Anti-static polyester tape” are included in our product list. Anti-static polyimide tape is made of anti-static polyimide film as backing coated with silicone adhesive; Anti-static polyester tape is made of anti-static polyester film as backing coated with silicone adhesive. The special antistatic process effectively reduces the static electricity generation during tape fabrication and unwinding process which can prevent the electrostatic damage.
Features:
∙ Excellent electrical insulation properties ∙ Wide range of temperature
∙ Good adhesion, easily peeling off and leaving no residue
∙ Solvent and corrosion resistance
∙ Low surface static electricity
Application：
∙ Packaging for PCB, mobile phone and other electronics in need of electrostatic protection
∙ Electrical industry such as high frequency transformer, motor and other insulation
∙ PCB welding, SMT production is prone to electrostatic operation
Product series and main technical parameters:
|
Product Number |
HZTAPE- |
HZTAPE- |
|
Backing/Adhesive |
Polyimide film / silicone |
Polyester film / silicone |
|
Colour |
Amber |
Clear /Red/ Green / yellow / Blue / Black / Blue / black/ opal |
|
Backing thickness (mm) |
0.025/0.05/0.75/0.10/0.125 |
0.025/0.028/0.035/0.035/0.038/0.05/0.075 |
|
Total thickness (mm) |
0.06/0.08/0.12/0.15/0.18 |
0.04 /0.055/0.05/0.065/0.065/0.08/0.13 |
|
Anti-static coefficient |
1X10^8 |
1X10^7 |
|
Adhesion to steel ±0.02 (N/25mm) |
3-6.5 |
3-14 |
|
Tensile strength (kg/25mm) |
8-40 |
11-36 |
|
Elongation% |
30-85 |
100-145 |
|
Corrosion resistance coefficient |
1 |
1 |
|
Dielectric strength(Volt) |
≥5000-16000 |
≥3500-8200 |
|
Temp. rating |
260℃(500℉) |
-40℃-200℃(-40℉-390℉) |
|
Insulation class |
H |
H |
Slitting and packing
1. Width：500mm, 2-500mm can be customized slitting
2. Length: 33m, 66m, can be customized
3. Plastic core internal diameter：76mm(3”), 38mm(1.5”)
4. Packing: carton or pallet
Note： Above data is the accumulative value by using the recognized test methods. In order to ensure the correct selection of the products, please refer the specification and test sample, or feel free to contact our technical service to provide you with further services.
