Product details

  • 448

Product Attributes

Product Name: HZTAPE-P2540F/P2855F/P3550F/P3565F/P3865F/P5080F/P7513F

Release Date: 2016-03-29

Hits: 2130

Two Dimensional Code:

Description:


Product Name:

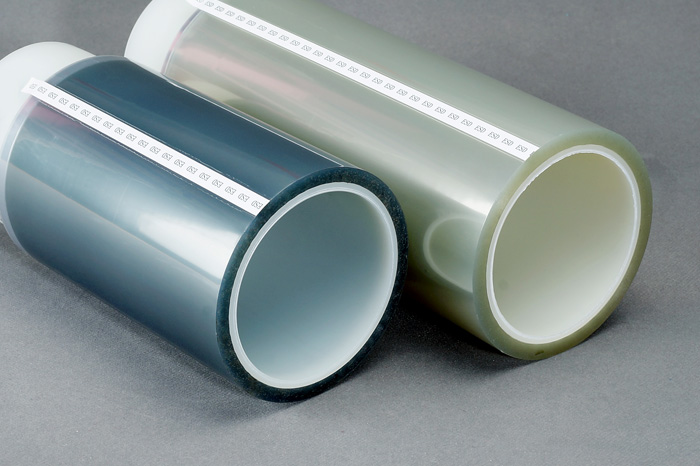

Antistatic polyester adhesive tape


Product Number: HZTAPE-P2540F/P2855F/P3550F/P3565F/P3865F/P5080F/P7513F



Features:

∙ Excellent electrical insulation properties

∙ Wide range of temperature

∙ Good adhesion, easily peeling off and leaving no residue

∙ Solvent and corrosion resistance

∙ Low surface static electricity




Application:

∙ Packaging for PCB, mobile phone and other electronics in need of electrostatic protection

∙ Electrical industry such as high frequency transformer, motor and other insulation

∙ PCB welding, SMT production is prone to electrostatic operation



Specification:

Product Number

HZTAPE-
P2540F/P2855F/P3550F/P3565F/P3865F/P5080F/P7513F

Backing/Adhesive

Polyester film / silicone

Colour

Clear /Red/ Green / Yellow / Blue / Black Blue / Black/ Opal

Backing thickness (mm)

0.025/0.028/0.035/0.035/0.038/0.05/0.075

Total thickness (mm)

0.04 /0.055/0.05/0.065/0.065/0.08/0.13

 Anti-static coefficient

1X10^7

Adhesion to steel ±0.02 (N/25mm)

 3-14

Tensile strength (kg/25mm)

11-36

Elongation%

100-145

Corrosion resistance coefficient

1

Dielectric strength(Volt)

≥3500-8200

Temp. rating

 -40-200(-40-390)

Insulation class

Length (m)

33m66m, 220m, Customized

Width (mm)

2-1000mm, Customized
