Product details

  • 429

Product Attributes

Product Name: HZTAPE-K8158

Release Date: 2016-03-29

Hits: 1872

Two Dimensional Code:

Description:

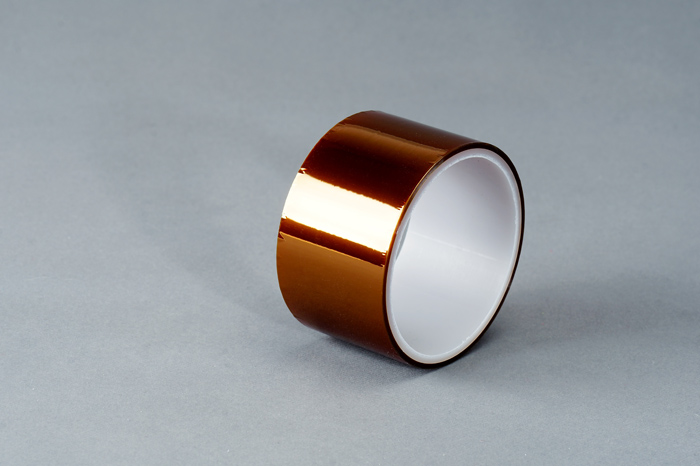

Product Name:Polyimide tape

Product Number: HZTAPE-K8158



Features:

 Excellent electrical insulation properties

∙ Wide range of temperature up to 260℃ (500℉)

∙ Good adhesion, easily peeling off and leaving no residue

∙ Solvent and corrosion resistance






Applications:

∙ Mask for protection gold fingers or edge connectors of PCB during the process of wave solder, solder reflow or solder dip

∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components

∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.

∙ Other Class H electrical insulation application on various electronic or electrical components assembly



Specifications:

Product Number

HZTAPE- K8158

Backing/Adhesive

PI/Silicone

Backing thickness  mm(mil)

0.013 (0.5)

Total thickness  mm(mil)

0.03 (1.2)

Colour

Amber

Adhesion to steel (N/25mm)

  3-4

Tensile strength (Kg/25mm)

8

Elongation%

30-40

Corrosion resistance coefficient

1

Dielectric strength (Volt)

≥2500

Temp. rating

260(500)

Insulation class

 H

Length (m)

33m66m, 220m, Customized

Width(mm)

2-500mm, Customized
