Product Name: HZTAPE-K5010

Release Date: 2016-04-20

Hits: 1956

Two Dimensional Code:

Description:

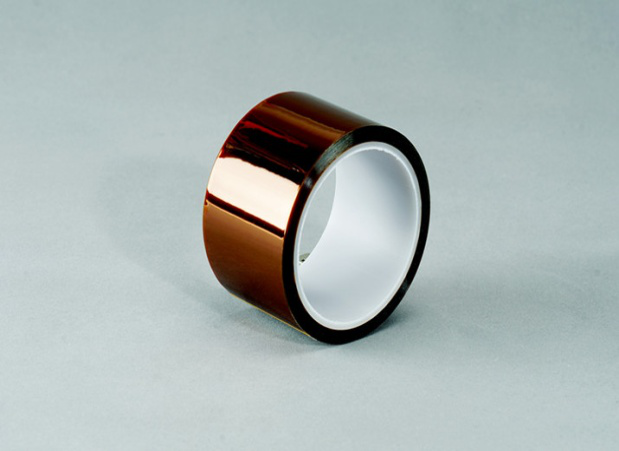

Product Name: Polyimide tape

Product Number: HZTAPE-K5010


Features:

∙ Excellent electrical insulation properties

∙ Wide range of temperature up to 260℃ (500℉)

∙ Good adhesion, easily peeling off and leaving no residue

∙ Solvent and corrosion resistance






Applications:

∙ Mask for protection gold fingers or edge connectors of PCB during the process of wave solder, solder reflow or solder dip

∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components

∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.

∙ Other Class H electrical insulation application on various electronic or electrical components assembly



Specifications:

Product Number

HZTAPE- K5010

Backing/Adhesive

PI/Silicone

Backing thickness  mm(mil)

0.05 (2.0)

Total thickness  mm(mil)

0.1 (4.0)

Colour

Amber

Adhesion to steel (N/25mm)

 6-7

Tensile strength (Kg/25mm)

20

Elongation%

55-60

Corrosion resistance coefficient

1

Dielectric strength (Volt)

≥7000

Temp. rating

260(500)

Insulation class

 H

Length (m)

33m,66m, 220m, Customized

Width(mm)

2-500mm, Customized
