Product Name： HZTAPE-K8458
Release Date： 2016-03-29
Hits： 1886
Two Dimensional Code：
Description：

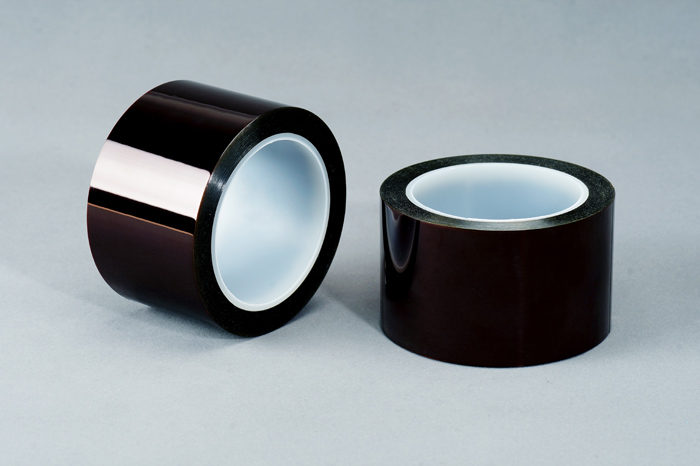

Product Name：Polyimide tape
Product Number: HZTAPE-K8458
Features:
∙ Excellent electrical insulation properties
∙ Wide range of temperature up to 260℃ (500℉)
∙ Good adhesion, easily peeling off and leaving no residue
∙ Solvent and corrosion resistance
Applications:
∙ Mask for protection gold fingers or edge connectors of PCB during the process of wave solder, solder reflow or solder dip
∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components
∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.
∙ Other Class H electrical insulation application on various electronic or electrical components assembly
Specifications:
|
Product Number |
HZTAPE- K8458 |
|
Backing/Adhesive |
PI/Silicone |
|
Backing thickness mm(mil) |
0.075 (3.0) |
|
Total thickness mm(mil) |
0.12 (4.8) |
|
Colour |
Amber |
|
Adhesion to steel (N/25mm) |
5-6 |
|
Tensile strength (Kg/25mm) |
20 |
|
Elongation% |
65-70 |
|
Corrosion resistance coefficient |
1 |
|
Dielectric strength (Volt) |
≥10000 |
|
Temp. rating |
260℃ (500℉) |
|
Insulation class |
H |
|
Length (m) |
33m，66m, 220m, Customized |
|
Width(mm) |
2-500mm, Customized |
