Product Name: HZTAPE-K8258
Release Date: 2016-03-29
Hits: 2192
Two Dimensional Code:
Description:

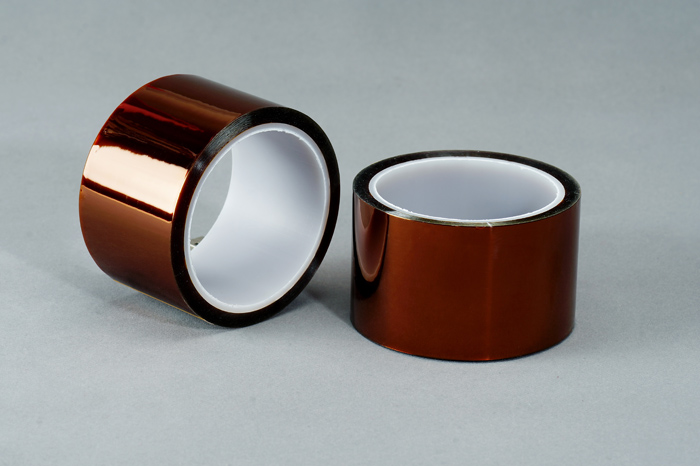

Product name:Polyimide tape
Product Number: HZTAPE-K8258
Features:
∙ Excellent electrical insulation properties
∙ Wide range of temperature up to 260℃ (500℉)
∙ Good adhesion, easily peeling off and leaving no residue
∙ Solvent and corrosion resistance
Applications:
∙ Mask for protection gold fingers or edge connectors of PCB during the process of wave solder, solder reflow or solder dip
∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components
∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.
∙ Other Class H electrical insulation application on various electronic or electrical components assembly
Specifications:
Product Number |
HZTAPE- K8258 |
Backing/Adhesive |
PI/Silicone |
Backing thickness mm(mil) |
0.025 (1.0) |
Total thickness mm(mil) |
0.06 (2.4) |
Colour |
Amber |
Adhesion to steel (N/25mm) |
5-6 |
Tensile strength (Kg/25mm) |
10 |
Elongation% |
45-50 |
Corrosion resistance coefficient |
1 |
Dielectric strength (Volt) |
≥5000 |
Temp. rating |
260℃ (500℉) |
Insulation class |
H |
Length (m) |
33m,66m, 220m, Customized |
Width(mm) |
2-500mm, Customized |
