Product Name： HZTAPE-K6250S, K6550S, K6100S
Release Date： 2015-11-03
Hits： 1873
Two Dimensional Code：
Description：

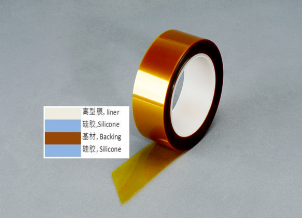

Product Name：Double-sided polyimide tape
Product Number: HZTAPE-K6250S, K6550S, K6100S
Features:
∙ Excellent electrical insulation properties
∙High temperature resistance up to 260℃(500℉)
∙Easily die cutting into all kinds of kapton labels
Application:
∙ Used as polyimide labels on PCB、Mobile phones and all kinds of electronic appliances after die-cutting
∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components
∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.
∙ Other Class H electrical insulation application on various electronic or electrical components assembly
Specification:
|
Product Number |
HZTAPE- K6250S |
HZTAPE- K6550S |
HZTAPE- K6100S |
|
Backing/Adhesive |
PI/Silicone |
PI/Silicone |
PI/Silicone |
|
Backing thickness mm(mil) |
0.025 (1.0) |
0.05 (2.0) |
0.1 (4.0) |
|
Total thickness mm(mil) |
0.095 (3.8) |
0.15 (6.0) |
0.2 (8.0) |
|
PET liner thickness mm(mil) |
0.075 (3.0)*2 |
0.05 (2.0) |
0.05 (2.0) |
|
Tape color |
Amber |
Amber |
Amber |
|
Liner color |
Transparent / white |
Transparent / white |
Transparent / white |
|
Adhesion to steel±0.02 (N/25mm) |
5-6 |
5-6 |
4.5-6.5 |
|
Tensile strength (Kg/25mm) |
14 |
20 |
35 |
|
Elongation % |
45-50 |
55-60 |
60-65 |
|
Corrosion resistance coefficient |
1 |
1 |
1 |
|
Dielectric strength (Volt) |
≥5000 |
≥7000 |
≥12000 |
|
Temp. rating |
260℃(500℉) |
260℃(500℉) |
260℃(500℉) |
|
Insulation class |
H |
H |
H |
|
Length (m) |
33m，66m, 220m, Customized |
||
|
Width (mm) |
2-500mm, Customized |
||
