Product Name: HZTAPE-K6250SS
Release Date: 2015-11-03
Hits: 1872
Two Dimensional Code:
Description:

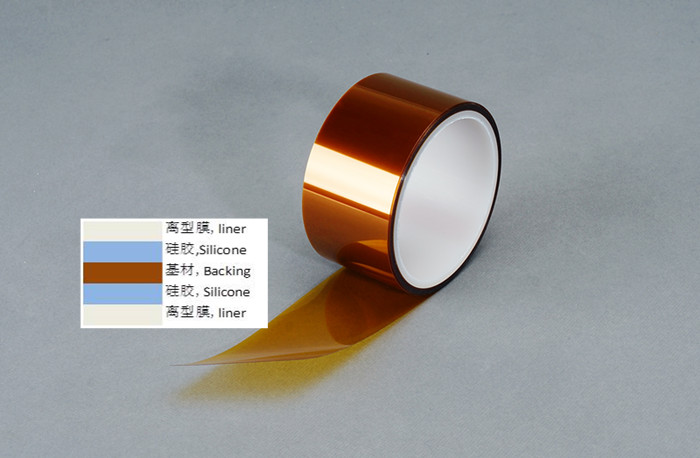

Product Name: Double-sided polyimide tape
Product Number: HZTAPE-K6250SS
Features:
∙ Excellent electrical insulation properties
∙High temperature resistance up to 260℃(500℉)
∙Easily die cutting into all kinds of kapton labels
Application:
∙ Used as polyimide labels on PCB、Mobile phones and all kinds of electronic appliances after die-cutting
∙ Fixing of electrical coils in motors, transformers, capacitors and other electrical components
∙ Other high temperature shielding protection, such as 3D printing bed mask, high temperature powder spray coating, etc.
∙ Other Class H electrical insulation application on various electronic or electrical components assembly
Specification:
Product Number |
HZTAPE- K6250SS |
Backing/Adhesive |
PI/Silicone |
Backing thickness mm(mil) |
0.025 (1.0) |
Total thickness mm(mil) |
0.07 (2.8) |
PET liner thickness mm(mil) |
0.05/0.075(2/3) |
Tape color |
Amber |
Liner color |
Transparent / white |
Adhesion to steel±0.02 (N/25mm) |
3.5-4.5 |
Tensile strength (Kg/25mm) |
14 |
Elongation % |
45-50 |
Corrosion resistance coefficient |
1 |
Dielectric strength (Volt) |
≥5000 |
Temp. rating |
260℃ (500℉) |
Insulation class |
H |
Length (m) |
33m,66m, 220m, Customized |
Width (mm) |
2-500mm, Customized |
