Product Name: HZTAPE- P7513
Release Date: 2016-03-29
Hits: 2090
Two Dimensional Code:
Description:

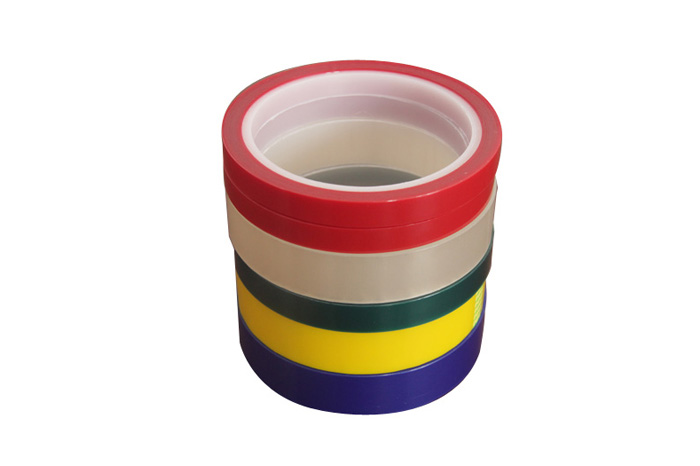

Product Name:Polyester tape
Product Number: HZTAPE- P7513
Features:
∙ Flexible and conformable
∙ Good adhesion and easy to peel, leaving no residue
∙ High temperature resistance up to 200℃
∙ Excellent electrical insulation
Application:
∙ Mask or binding for high temperature coating protection in home appliances, machinery, electronics and other industries
∙ Mask or binding for high temperature coating insulation protection in electronic products and automotive industry
∙ Joint use of release paper (also known as: feeder tape)
Specification:
Product Number |
HZTAPE- P7513 |
Backing/Adhesive |
PET/Silicone |
Backing thickness ( mm) |
0.075 |
Total thickness (mm) |
0.13 |
Adhesion to steel (N/25mm) |
13-14 |
Tensile strength (Kg/25mm) |
36 |
Elongation% |
140-145 |
Dielectric strength (Volt) |
3500 |
Temp. rating (℃) |
-40℃-200℃ |
Color |
Clear /Red/ Green / Yellow / Blue / Black Blue / Black/ Opal |
Length (m) |
33m,66m, 220m, Customized |
Width (mm) |
2-1000mm, Customized |
