Product Name： HZTAPE-P3865
Release Date： 2016-03-29
Hits： 1979
Two Dimensional Code：
Description：

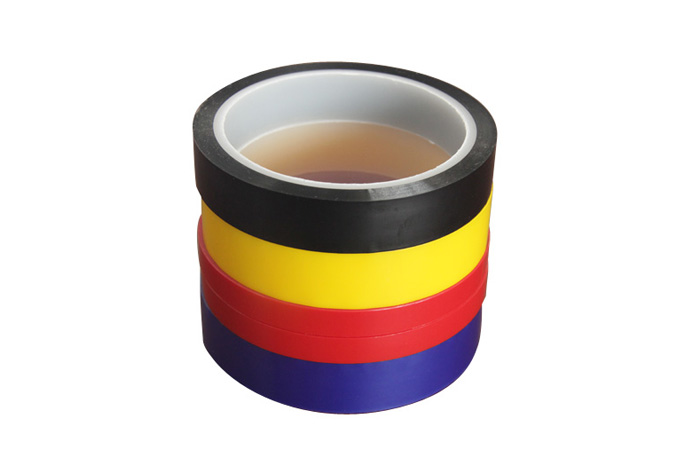

Product Name：Polyester tape
Product Number: HZTAPE- P3865
Features:
∙Flexible and conformable
∙Good adhesion and easy to peel, leaving no residue
∙High temperature resistance up to 200℃
∙Excellent electrical insulation
Application:
∙ Mask or binding for high temperature coating protection in home appliances, machinery, electronics and other industries
∙ Mask or binding for high temperature coating insulation protection in electronic products and automotive industry
∙ Joint use of release paper (also known as: feeder tape)
Specification:
|
Product Number |
HZTAPE- P3865 |
|
Backing/Adhesive |
PET/Silicone |
|
Backing thickness ( mm) |
0.038 |
|
Total thickness (mm) |
0.065 |
|
Adhesion to steel (N/25mm) |
6.0-7.0 |
|
Tensile strength (Kg/25mm) |
16 |
|
Elongation% |
120-130 |
|
Dielectric strength (Volt) |
6,300 |
|
Temp. rating (℃) |
-40℃-200℃ |
|
Color |
Clear /Red/ Green / Yellow / Blue / Black Blue / Black/ Opal |
|
Length (m) |
33m，66m, 220m, Customized |
|
Width (mm) |
2-1000mm, Customized |
